DELL QLE2462 4Gb Dual Port PCI-E FC HBA Controller Card 031JR3

DELL QLE2462 4Gb Dual Port PCI-E FC HBA Controller Card 031JR3

EUR 113,35

zzgl. 19 % USt zzgl. Versandkosten

Art.Nr. 031JR3

  Mehr Details

Produktbeschreibung

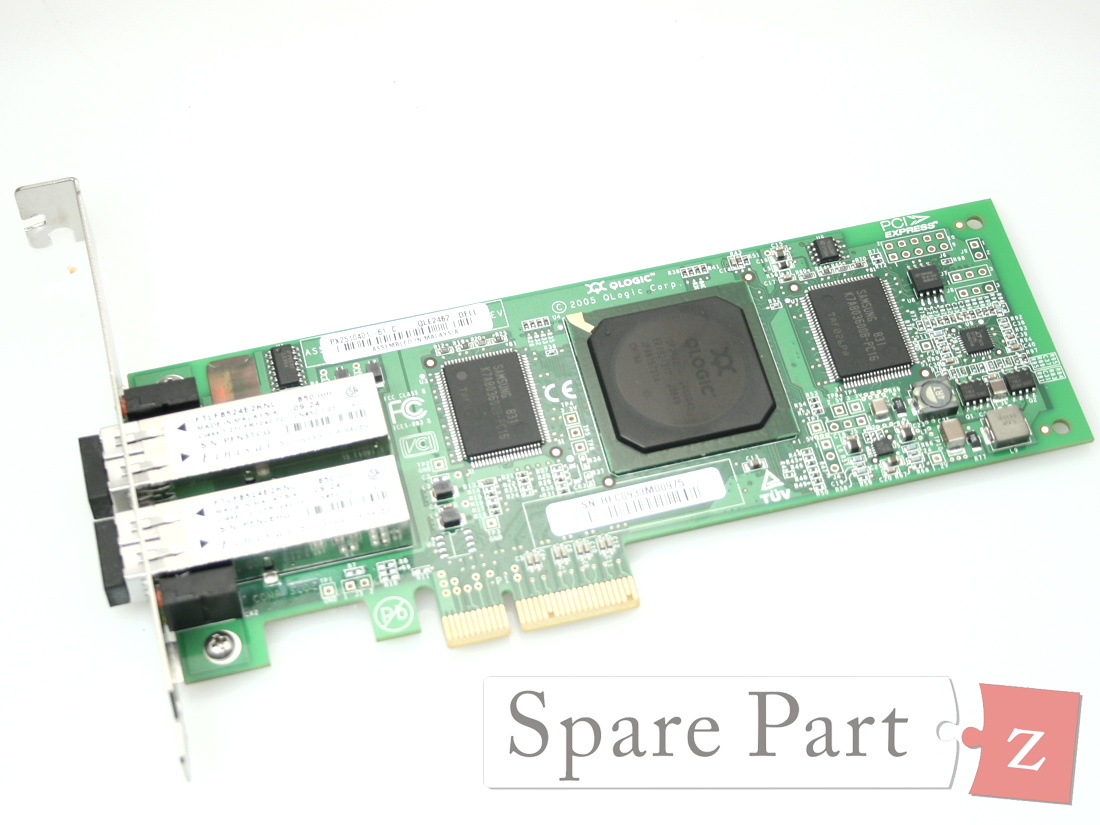

DELL QLE2462 4Gb Dual Port PCI-E FC HBA Controller Card 031JR3

DELL 4Gb Dual Port Fibre-Channel-Host-Bus-Adapter Controller Card QLE2462

Bus-Schnittstelle
PCI Express x4

Speicher
1 MB SRAM pro Port, 1 MB FLASH (SPI) und 2 KB NVRAM (SPI)

Datenübertragungsraten
4/2/1 GB/s Auto-Negotiation (4.25/2.125/1.0625 GB/s)

Leistung
100.000 IOPS pro Port

Datendurchsatz
750 MB/s pro Port

Topologie
Punkt-zu-Punkt (N_Port), Arbitrated Loop (NL_Port) und Switched Fabric (N_Port)

Protokolle
FCP (SCSI-FCP), IP (FC-IP), FICON (FC-SB-2), FC-TAPE (FCP-2)

Formfaktor
Low-Profile MD2: 17 × 5 cm (6,7" × 2,5")

Models:
EMC
CX400

PowerEdge
1800, 1900, 1950, 2850, 2850 R, 2900, 2950, 2970
R410, R415, R420, R510, R515, R520, R610, R620, R710, R715, R720, R720XD,
R805, R810, R815, R820, R900, R905, R910, T610, T710

PowerVault
DL2100, DL2200, DL2300, DR4000, NX1950, NX300, NX3000, NX3100, NX3200, NX3300

Part#: DH226, JF340, KC184, 31JR3, 0DH226, 0JF340, 0KC184, 031JR3, 331-4444, 406-10466
Zustand/Condition: refurbished

Abbildung symbolisch/symbolic figure
